Semiconductor manufacturing, vacuum processing, energy research and high-temperature engineering increasingly require materials that can operate where conventional metals and ceramics reach their practical limits. Engineers are therefore paying greater attention to specialised materials that provide precise combinations of thermal, electrical and chemical properties.

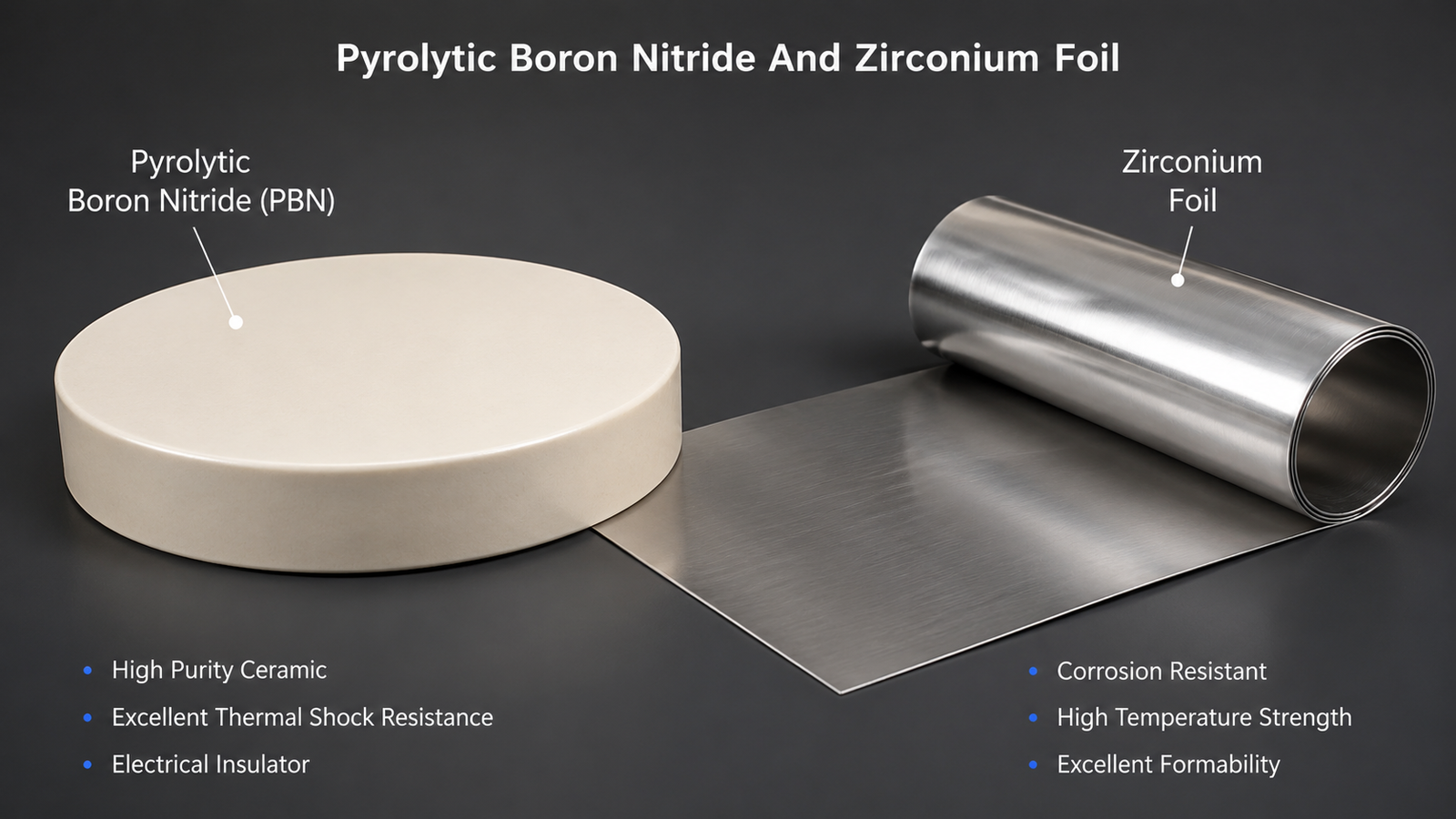

Pyrolytic Boron Nitride and Zirconium Foil are two good examples. They are fundamentally different materials, yet both demonstrate how advanced material selection can influence the reliability and performance of sophisticated technologies.
Extreme Environments Are Changing Material Requirements
Modern equipment rarely depends on just one desirable material property.
A component operating inside an advanced processing system might need to tolerate elevated temperatures while remaining electrically insulating. Another may require corrosion resistance while maintaining metallic conductivity and extremely small thickness.
Requirements can include:
- Thermal stability
- Electrical insulation
- Corrosion resistance
- Controlled heat transfer
- High material purity
- Vacuum compatibility
- Dimensional precision
- Surface stability
This explains why advanced industries increasingly rely on purpose-specific materials rather than general-purpose alternatives.
Pyrolytic Boron Nitride Offers an Unusual Combination of Properties
Pyrolytic Boron Nitride, commonly abbreviated as PBN, is a specialised ceramic typically produced through chemical vapour deposition.
This production technique is one reason PBN is interesting.
Instead of manufacturing a component primarily by pressing ceramic powders together with processing additives, pyrolytic deposition forms boron nitride under carefully controlled conditions. This can produce material with very high purity.
Purity becomes particularly important when the component will interact with semiconductor materials or other substances that are sensitive to contamination.
PBN therefore occupies an important niche within advanced ceramic engineering.
PBN Handles Heat Differently
One of the characteristics that distinguishes Pyrolytic Boron Nitride is its directional thermal behaviour.
PBN has a layered structure. Consequently, thermal conductivity is substantially different depending on the direction through which heat travels.
This property is known as thermal anisotropy.
For designers, anisotropy can be useful rather than problematic. It allows the material’s orientation to become part of thermal management strategy.
PBN also provides excellent electrical insulation, making it attractive when engineers need to control heat without introducing an electrically conductive component.
Where Is Pyrolytic Boron Nitride Used?
PBN has developed a strong association with semiconductor and specialised high-temperature processing.
Typical applications can include:
- Crystal-growth crucibles
- Semiconductor-processing components
- Evaporation boats
- Electrical insulators
- Vacuum-system components
- High-purity containers
- Thermal-management parts
- Laboratory processing equipment
Among these, crystal-growth applications demonstrate the value of material purity particularly well.
When sophisticated semiconductor compounds are processed, contamination from the container can affect material quality. Choosing an appropriately compatible high-purity material can therefore become an important part of process design.
Zirconium Foil Takes Advanced Materials in Another Direction
If PBN demonstrates what specialised ceramics can accomplish, Zirconium Foil illustrates the possibilities available with advanced metallic materials.
Zirconium is a transition metal recognised for its corrosion resistance in many environments. It also has a high melting point and relatively low neutron absorption.
Producing zirconium in thin foil form allows these fundamental characteristics to be used in applications requiring precisely controlled metallic specimens.
This is especially valuable for scientific research.
Instead of requiring a large structural zirconium component, researchers may need only a very thin piece of material to investigate surface reactions, oxidation or diffusion.
Why Surface Science Benefits From Zirconium Foil
Many material reactions begin at the surface.
This makes Zirconium Foil particularly interesting because thin foil provides substantial exposed surface relative to the amount of material used.
Researchers can expose zirconium specimens to controlled temperatures, gases or chemical environments and study the resulting physical or chemical changes.
Applications may include:
- Surface-science experiments
- Oxidation research
- Corrosion testing
- Diffusion studies
- Electrochemical investigations
- Thin-film development
- Vacuum research
- High-temperature testing
- Nuclear-material studies
- Surface modification
Depending on the experiment, purity and surface finish can have a significant influence on results.
Why Zirconium Has a Connection With Nuclear Technology
One characteristic frequently associated with zirconium is relatively low neutron absorption.
Materials used in nuclear environments must be evaluated according to factors beyond conventional mechanical properties. Their interactions with neutrons can be critically important.
Zirconium-based materials consequently have an established role in nuclear technology.
However, buyers should distinguish between general Zirconium Foil, specialised zirconium grades and zirconium alloys. Composition, purity and hafnium content may matter significantly depending on the intended use.
Pyrolytic Boron Nitride and Zirconium Foil Are Not Competitors
Placing both materials side by side demonstrates how differently advanced materials can solve engineering problems.
| Requirement | Pyrolytic Boron Nitride | Zirconium Foil |
| Material type | Ceramic | Metal |
| Electrical behaviour | Insulating | Conductive |
| Typical structure | Layered PBN | Metallic zirconium |
| Major strength | Purity and thermal/electrical behaviour | Corrosion resistance and thin metallic form |
| Typical products | Crucibles and components | Foils and thin sheets |
| Semiconductor processing | Highly relevant | Specialised applications |
| Surface research | Selected uses | Highly relevant |
| Nuclear-related research | Specialised | Important |
| Thermal behaviour | Strongly directional | Metallic conduction |
| Formability | Ceramic limitations | Thin foil can be formed |
The correct question is therefore not, “Which material is better?”
It is, “Which material provides the properties required by the application?”
How Engineers Can Make a Better Material Choice
A technically impressive material can still fail if used in the wrong environment.
Before selecting Pyrolytic Boron Nitride or Zirconium Foil, engineers should consider:
Temperature: What are the normal and maximum operating temperatures?
Atmosphere: Will the material operate in air, vacuum or another controlled environment?
Electrical function: Is electrical insulation required, or must the component conduct electricity?
Chemical exposure: Which gases, liquids or molten materials will contact it?
Purity: How sensitive is the process to contamination?
Dimensions: What thickness and manufacturing tolerances are acceptable?
Surface condition: Does surface roughness or finish influence performance?
These questions provide a much stronger foundation for material selection than choosing solely according to price.
Frequently Asked Questions
1. Is Pyrolytic Boron Nitride the same as conventional boron nitride?
Not exactly. PBN is produced through a pyrolytic deposition process and has distinctive structural and purity characteristics.
2. Is PBN suitable for electrical insulation?
Yes. Electrical insulation is one of its important properties.
3. Why is PBN associated with semiconductor manufacturing?
Its purity, thermal properties and low contamination potential make it useful for specialised semiconductor processes.
4. What does thermal anisotropy mean?
It means the material transfers heat differently depending on direction.
5. Is Zirconium Foil a ceramic material?
No. Zirconium foil is metallic.
6. What makes Zirconium Foil useful for research?
Its thin geometry, corrosion resistance and controlled surface make it suitable for numerous materials-science experiments.
7. Does zirconium resist high temperatures?
Zirconium has a high melting point, although practical performance depends on atmosphere and application conditions.
8. Why is zirconium used in nuclear technology?
One important reason is its relatively low neutron absorption.
9. Can Zirconium Foil replace PBN?
Generally not. Their electrical, mechanical and thermal characteristics are fundamentally different.
10. Why should purity be specified when purchasing advanced materials?
Impurities can influence processing, experiments and final material performance, particularly in sensitive applications.
