When temperatures rise beyond the limits of conventional materials, choosing the right ceramic component becomes critical. Industrial furnaces, semiconductor systems, vacuum equipment, research laboratories, and molten-material processing all require components that can maintain their properties in demanding environments.

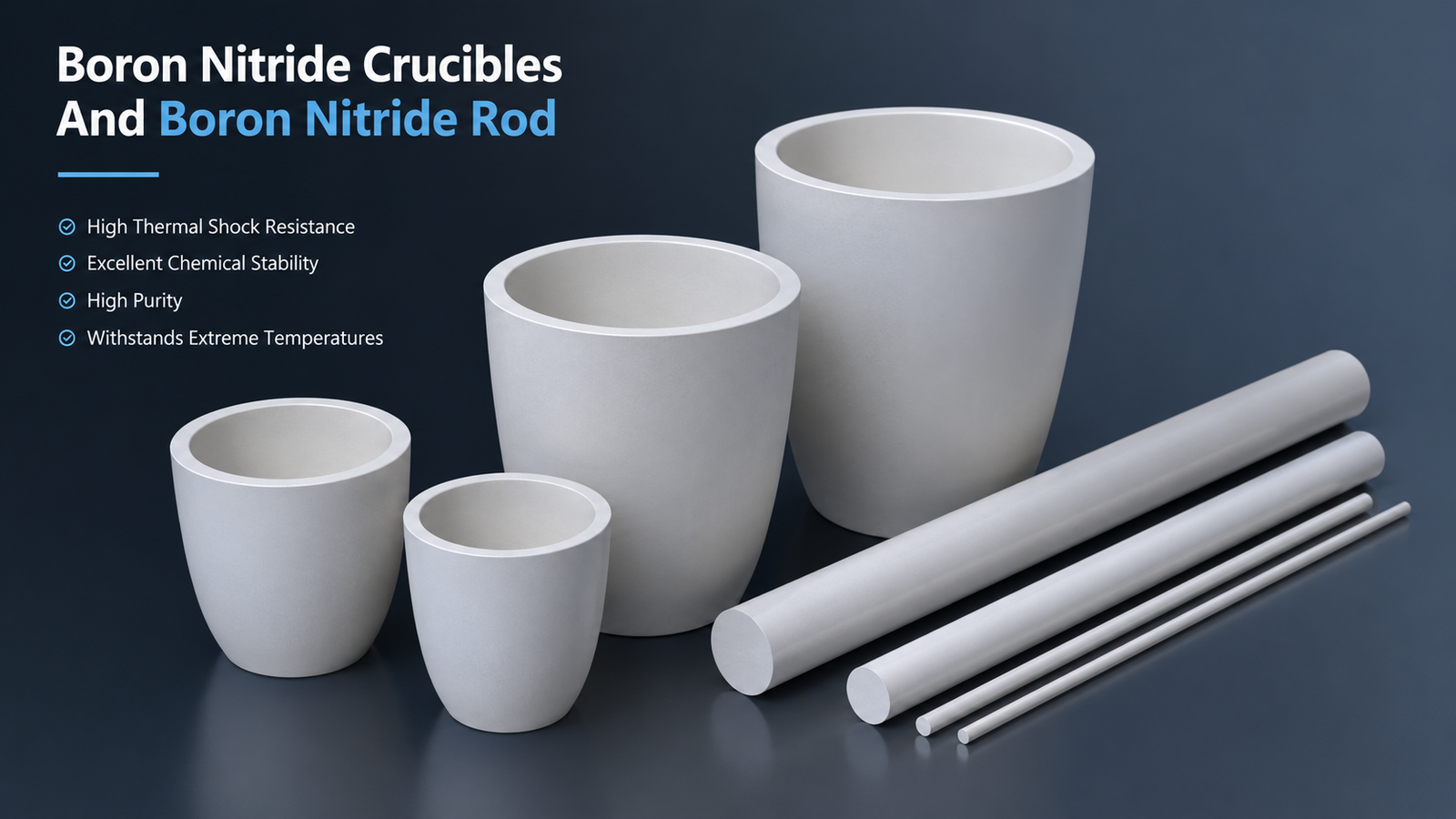

This is where Boron Nitride Crucibles and Boron Nitride Rod have become particularly interesting. Boron nitride is an advanced ceramic known for combining high-temperature performance with electrical insulation, thermal-shock resistance, chemical stability, and excellent machinability.
But what exactly makes boron nitride different from conventional ceramics, and where are crucibles and rods actually used? Let’s explore.
What Is Boron Nitride?
Boron nitride is a compound of boron and nitrogen that exists in several crystalline structures. Hexagonal boron nitride, commonly known as hBN, is particularly important for industrial applications.
Its layered structure is often compared with graphite. However, there is an important difference: hexagonal boron nitride is generally an electrical insulator.
This gives the material an unusual combination of properties, including:
- High-temperature stability
- Electrical insulation
- Good thermal conductivity
- Low thermal expansion
- Thermal-shock resistance
- Low-friction characteristics
- Chemical stability
- Good machinability in suitable grades
These characteristics allow boron nitride to solve engineering problems where ordinary metals or ceramics may be less suitable.
What Are Boron Nitride Crucibles?
Boron Nitride Crucibles are specialised ceramic containers used to hold, melt, evaporate, or thermally process materials under controlled conditions.
A crucible used at extreme temperatures must do more than simply remain solid. It may need to withstand repeated heating and cooling, resist interaction with the material inside, and minimise unwanted contamination.
Boron nitride performs particularly well in selected applications because of its thermal properties and non-wetting behaviour with various materials.
This can help improve process control and make material removal easier after certain thermal operations.
Where Are Boron Nitride Crucibles Used?
The versatility of BN makes these crucibles suitable for a broad range of specialised applications.
Common examples include:
- Vacuum evaporation
- Crystal growth
- Molten-metal processing
- Semiconductor manufacturing
- High-temperature laboratory experiments
- Advanced alloy research
- Materials science
- Controlled-atmosphere furnaces
The correct application depends on the specific BN grade, operating temperature, furnace atmosphere, and chemical compatibility.
A crucible suitable for a vacuum environment, for example, should not automatically be assumed to have identical performance in an oxidising atmosphere.
Why Thermal Shock Resistance Matters
Imagine heating a ceramic component rapidly and then cooling it soon afterwards. Different areas of the material expand and contract, creating thermal stress.
If the ceramic cannot tolerate this stress, cracks may develop.
Boron Nitride Crucibles are attractive for thermal cycling because boron nitride has relatively low thermal expansion and good resistance to thermal shock.
This can be valuable in manufacturing and laboratory environments where repeated heating cycles are part of everyday operation.
What Is Boron Nitride Rod?
While crucibles provide material containment, Boron Nitride Rod gives engineers a versatile starting point for manufacturing custom ceramic components.
BN rod is generally supplied as cylindrical ceramic stock. Depending on its grade, it can then be machined according to the required component design.
Products commonly manufactured from BN rods include:
- Electrical insulators
- Ceramic nozzles
- Furnace spacers
- Sleeves
- Bushings
- Thermal supports
- Positioning fixtures
- Laboratory components
This flexibility makes rods useful when a standard off-the-shelf ceramic component cannot satisfy a particular engineering requirement.
Why Is Boron Nitride Rod Easy to Work With?
Machining is often a major challenge with technical ceramics.
Many advanced ceramics require specialised grinding or finishing processes. Suitable Boron Nitride Rod grades, however, can be relatively easy to machine compared with numerous other engineering ceramics.
Manufacturers can create features such as holes, slots, grooves, and specialised profiles.
Tips for Machining Boron Nitride
Good machining practices generally include:
- Using sharp cutting tools
- Applying controlled cutting forces
- Supporting thin sections carefully
- Avoiding aggressive machining
- Managing ceramic dust properly
- Following grade-specific machining recommendations
Remember That BN Is Still a Ceramic
Machinability should not be confused with metal-like toughness. Boron nitride remains a ceramic, so delicate edges and thin walls require appropriate handling.
Boron Nitride Crucibles vs Boron Nitride Rod
| Feature | Boron Nitride Crucibles | Boron Nitride Rod |
| Main purpose | Material containment | Component manufacturing |
| Typical form | Cup or container | Cylindrical bar |
| Main advantage | Thermal processing | Machining flexibility |
| Common uses | Melting, evaporation | Insulators, nozzles, sleeves |
| Customisation | Size, depth, shape | Extensive custom machining |
| Typical environment | Furnace/vacuum systems | Thermal/electrical equipment |
Both forms take advantage of boron nitride’s unique characteristics but serve different engineering purposes.
How to Choose the Right Boron Nitride Product
Choosing BN based only on dimensions or price can be a mistake.
Different boron nitride grades may contain different additives and have different thermal, electrical, mechanical, and chemical properties.
Before selecting Boron Nitride Crucibles or Boron Nitride Rod, consider:
- Maximum operating temperature
- Furnace atmosphere
- Vacuum conditions
- Material purity
- Chemical exposure
- Electrical insulation requirements
- Thermal cycling
- Mechanical loading
- Dimensions and tolerances
- Required surface finish
Discussing these factors with a knowledgeable manufacturer can help identify a more appropriate BN grade.
Frequently Asked Questions About Boron Nitride
What are Boron Nitride Crucibles used for?
They are used for specialised melting, evaporation, crystal growth, research, and other high-temperature material-processing applications.
What is Boron Nitride Rod used for?
It is used to manufacture customised ceramic components such as nozzles, insulators, sleeves, spacers, and furnace fixtures.
Is boron nitride suitable for high temperatures?
Yes. Appropriate BN grades can operate in demanding high-temperature environments, although actual limits depend on atmosphere and material grade.
Is boron nitride electrically insulating?
Hexagonal boron nitride is generally an excellent electrical insulating material.
Can Boron Nitride Rod be machined?
Yes. Machinability is one of the major advantages of suitable BN grades.
Why are BN crucibles used for thermal processing?
They offer useful thermal stability, thermal-shock resistance, and non-wetting behaviour with various compatible materials.
Can boron nitride be used in vacuum systems?
Selected BN grades are commonly considered for vacuum and controlled-atmosphere thermal applications.
Can BN crucibles hold molten metals?
They may be suitable for selected molten metals, but compatibility should always be confirmed for the specific metal and operating conditions.
Are all boron nitride grades the same?
No. Purity, additives, density, strength, machinability, and temperature capability can vary between grades.
How should I choose a boron nitride supplier?
Look for technical expertise, clearly documented material grades, custom machining capabilities, dimensional control, quality assurance, and application-specific support.
