The Hidden Power Behind Heavy Machinery: Understanding Hydraulic Hose and Hydraulic Fittings -

When an excavator lifts tonnes of material, a manufacturing press shapes metal, or agricultural machinery operates continuously across difficult terrain, hydraulic power is usually working behind the scenes. While pumps, motors, and cylinders receive much of the attention, reliable hydraulic operation would be impossible without Hydraulic Hose and Hydraulic Fittings.

These components act as the circulation network of hydraulic equipment. They transport pressurized fluid and create secure connections throughout the system. Choosing the right combination can improve reliability, while poor selection can contribute to leakage, energy loss, unexpected downtime, and expensive repairs.

For industries increasingly focused on productivity and preventive maintenance, understanding these essential components has become more important than ever.

Why Modern Machinery Depends on Hydraulic Connections

Hydraulic systems use pressurized fluid to transfer energy from one location to another. This principle allows relatively compact machinery to generate considerable force with precise control.

However, the fluid must travel safely between pumps, valves, cylinders, motors, filters, and other components.

A Hydraulic Hose provides a flexible route for this fluid, particularly where equipment moves or vibrates. Hydraulic Fittings connect the hose securely to other parts of the hydraulic circuit.

The effectiveness of the entire system therefore depends partly on the integrity of these connections.

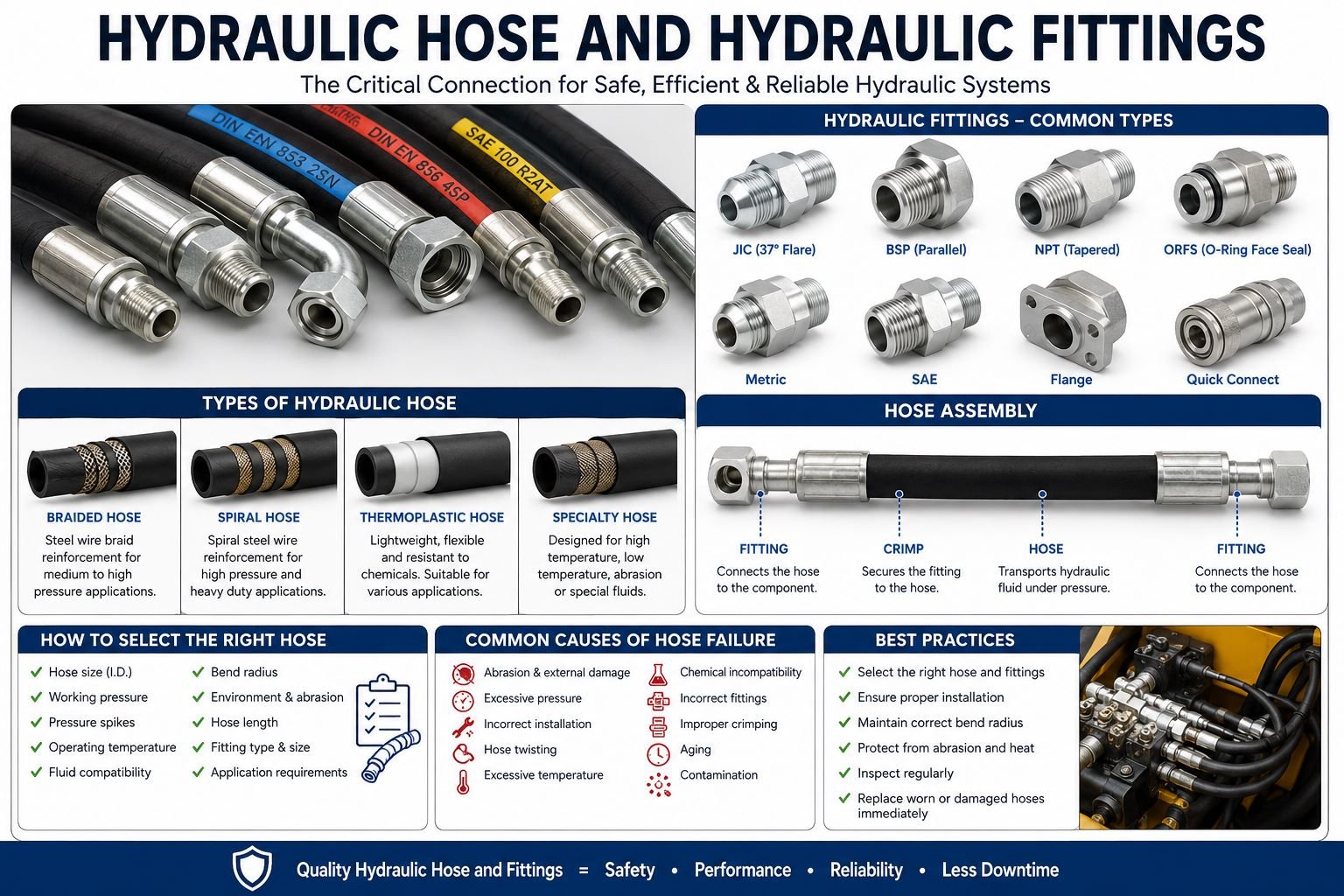

Hydraulic Hose Is More Than a Flexible Tube

At first glance, a hydraulic hose may look relatively simple. Internally, however, it is an engineered structure designed for demanding operating conditions.

A typical hose contains three layers.

The inner tube carries hydraulic fluid and must remain compatible with the selected media. Around this sits a reinforcement layer that provides strength against internal pressure. Finally, an outer cover protects the assembly against abrasion, moisture, weather, oil, and environmental exposure.

Reinforcement can include:

Textile materials
Steel-wire braid
Multiple spiral-wire layers
Specialized synthetic fibers

Construction varies because different machines create very different pressure, flexibility, temperature, and impulse requirements.

Hydraulic Fittings Complete the Fluid Path

Hydraulic Fittings provide the connection between flexible hoses and hydraulic equipment.

They can connect a hose to a pump, valve, cylinder, motor, manifold, filter, or another fluid line.

The challenge is that hydraulic connections are available in numerous standards.

Common examples include:

JIC
BSPP
BSPT
NPT
ORFS
SAE
Metric
Flange connections
Quick couplings

Two fittings may appear almost identical while using completely different threads or sealing methods. This makes accurate identification essential during maintenance and replacement.

The Real Strength Comes From Compatibility

A common misconception is that purchasing the strongest available Hydraulic Hose automatically creates a reliable assembly.

That is not necessarily true.

The hose, fitting, connection method, and operating conditions must be compatible.

Selection Factor	Hydraulic Hose	Hydraulic Fittings
Pressure	Correct working-pressure rating	Compatible pressure capability
Size	Appropriate internal diameter	Correct connection size
Temperature	Suitable tube and cover	Suitable fitting and seal
Fluid	Compatible inner material	Compatible seal/material
Installation	Correct bend and routing	Correct orientation and assembly
Environment	Abrasion/weather resistance	Corrosion resistance

The assembly effectively depends on its weakest component.

Different Applications Need Different Hose Designs

Not every hydraulic application requires the same construction.

Braided Hose for Flexible Applications

Wire-braided hoses are widely used where a combination of flexibility and pressure capability is required.

They can be found in agricultural equipment, manufacturing machinery, material-handling systems, and numerous mobile hydraulic applications.

Spiral Hose for Demanding Machinery

Spiral reinforcement is commonly used for severe high-pressure and high-impulse applications.

Heavy excavators, mining machinery, drilling equipment, and construction systems are typical examples.

Thermoplastic Hose for Specialized Requirements

Thermoplastic hoses can provide lightweight construction, flexibility, and resistance to certain chemicals.

Specific designs may also be appropriate for applications requiring electrical non-conductivity or compact routing.

Hose Diameter Can Affect System Efficiency

Selecting the correct hose diameter is not simply about whether a connection physically fits.

Imagine forcing a large amount of water through a very narrow pipe. Fluid velocity increases, and additional resistance develops.

A similar principle applies to hydraulic systems.

An undersized Hydraulic Hose may contribute to excessive fluid velocity, pressure loss, heat generation, and reduced system efficiency.

Selection should consider:

Required flow rate
Recommended fluid velocity
Hose internal diameter
Hose length
System pressure
Application requirements

Proper sizing helps hydraulic fluid move efficiently through the circuit.

Pressure Is Only Part of the Selection Process

Pressure rating is essential, but choosing hydraulic components based solely on pressure is insufficient.

Operating conditions can involve repeated pressure cycles and temporary pressure surges. These conditions can place considerable stress on hose reinforcement and connection points.

The specified working pressure of the complete assembly must be appropriate for the actual system.

It is also important not to confuse working pressure with burst pressure. Burst values are not intended to represent normal operating limits.

Temperature Can Quietly Damage Hydraulic Hose

Heat is one of the factors capable of accelerating hose deterioration.

High-temperature hydraulic fluid may gradually affect the inner tube. External heat from engines, exhaust systems, furnaces, or industrial processes can damage the outer cover.

Very cold conditions may also influence flexibility.

Therefore, both fluid temperature and ambient temperature should be considered when selecting a Hydraulic Hose.

Where unavoidable heat exposure exists, appropriate shielding or alternative routing may help protect the assembly.

Hydraulic Fluid Must Match Hose Materials

Different hydraulic systems may use petroleum-based oil, synthetic fluids, biodegradable formulations, or water-based hydraulic fluids.

The hose inner tube and sealing materials must be chemically compatible with the media.

Incorrect material selection can potentially cause:

Swelling
Cracking
Softening
Hardening
Seal deterioration
Premature leakage

Instead of assuming compatibility, technicians should verify manufacturer recommendations for the specific fluid being used.

Poor Routing Can Destroy a Good Hose

A premium-quality hose can still fail prematurely because of poor installation.

One of the most common problems is abrasion. Continuous rubbing against a machine frame or another component can gradually remove the protective outer cover and eventually expose reinforcement.

Other installation problems include twisting, excessive tension, sharp bending, insufficient movement allowance, and routing close to heat sources.

The specified minimum bend radius should always be maintained.

Where rubbing cannot be completely eliminated, protective sleeves, guards, or clamps may help.

What Hydraulic Hose Damage Is Trying to Tell You

A failed hose often provides clues about the underlying problem.

For example, severe external wear may indicate incorrect routing. Damage close to a fitting could indicate excessive bending or stress. Heat-damaged covers may suggest excessive temperature exposure.

Maintenance teams should therefore investigate the cause instead of simply installing another hose.

Important warning signs include:

Cracks
Cuts
Abrasion
Exposed reinforcement
Blisters
Fluid leakage
Flattened areas
Unusual deformation
Corroded fittings
Damaged connections

Finding these signs early can prevent more disruptive failures.

Why Hydraulic Fittings Leak

When Hydraulic Fittings start leaking, tightening them immediately may seem like the obvious solution.

However, leakage can have several causes.

The fitting could have a damaged O-ring, contaminated sealing surface, incorrect thread, damaged seat, corrosion, or installation problem.

Excessive tightening may actually damage certain connections.

The correct approach is to identify the source of the leak, depressurize the equipment safely, inspect the connection, and repair or replace the appropriate component according to specifications.

Preventive Inspection Is Better Than Emergency Replacement

Waiting for a Hydraulic Hose to burst before replacing it can result in downtime, fluid loss, contamination, equipment damage, and potential safety hazards.

Preventive maintenance provides a more controlled approach.

A practical inspection program should examine:

Hose condition
Routing
Connection points
Abrasion areas
Protective covers
Fitting corrosion
Leakage
Machine movement
Temperature exposure

Inspection intervals should reflect equipment usage and operating conditions rather than relying on a universal schedule.

Safety Must Remain a Priority

High-pressure hydraulic systems require careful maintenance practices.

A pinhole leak can produce an extremely fine stream of pressurized fluid. Such leaks should never be located by running a hand across the hose.

Hydraulic fluid can penetrate skin and cause a serious injection injury.

Equipment should be safely isolated and depressurized before repair according to appropriate procedures. Critical hose assemblies should be serviced by trained personnel using suitable components and equipment.
