Choosing the right stainless steel pipe schedule is an important part of designing a safe, durable, and cost-effective piping system. Among the most commonly discussed options are Stainless Steel Pipe Schedule 40 and Schedule 10 Stainless Steel Pipe. Both are widely used across industrial, commercial, food-processing, chemical, architectural, and utility applications, but they differ significantly in wall thickness, weight, internal diameter, strength, and suitability for pressure service.
Understanding these differences can help engineers, buyers, fabricators, contractors, and plant operators avoid overdesign, reduce unnecessary costs, and select piping that matches the actual operating conditions.
Understanding Stainless Steel Pipe Schedules
A pipe schedule is a standardized designation used to identify pipe wall thickness. It does not directly indicate a fixed thickness because the actual wall measurement changes according to the nominal pipe size.
For example, a Schedule 40 pipe generally has a thicker wall than a Schedule 10 pipe of the same nominal size.
Common stainless steel pipe schedules include:
- Schedule 5S
- Schedule 10S
- Schedule 40S
- Schedule 80S
- Schedule 160
The schedule system helps manufacturers, engineers, and suppliers communicate pipe dimensions consistently.
What Is Stainless Steel Pipe Schedule 40?
Stainless Steel Pipe Schedule 40 is a medium-to-heavy wall piping option commonly chosen for applications that require greater mechanical strength and stronger resistance to internal pressure.
Its thicker wall makes it suitable for many industrial environments where piping may experience vibration, pressure changes, mechanical loads, or demanding service conditions.
Common stainless steel grades used for Schedule 40 pipe include:
- SS 304
- SS 304L
- SS 316
- SS 316L
The correct grade depends on factors such as corrosion exposure, fluid type, chloride concentration, operating temperature, and welding requirements.
Where Schedule 40 Stainless Steel Pipe Is Used
Stainless Steel Pipe Schedule 40 is widely used in industries where durability and structural reliability are important.
Typical applications include:
- Chemical processing systems
- Industrial water pipelines
- Petrochemical plants
- Pharmaceutical facilities
- Food processing equipment
- Compressed air lines
- Steam and utility piping
- Structural fabrication
- Manufacturing plants
- Process engineering installations
Its thicker wall can offer improved resistance to physical damage and demanding operating environments.
What Is Schedule 10 Stainless Steel Pipe?
Schedule 10 Stainless Steel Pipe is a thinner-wall stainless steel piping solution commonly selected for lower-pressure or moderate-duty applications.
Because it contains less material than Schedule 40 pipe of the same nominal size, it is generally lighter and easier to transport, handle, cut, fabricate, and install.
Schedule 10 stainless steel pipe can be an economical option where engineering calculations confirm that the reduced wall thickness is adequate.
It is commonly used in applications such as water transfer, food processing, pharmaceutical systems, drainage, architectural installations, and selected industrial fluid lines.

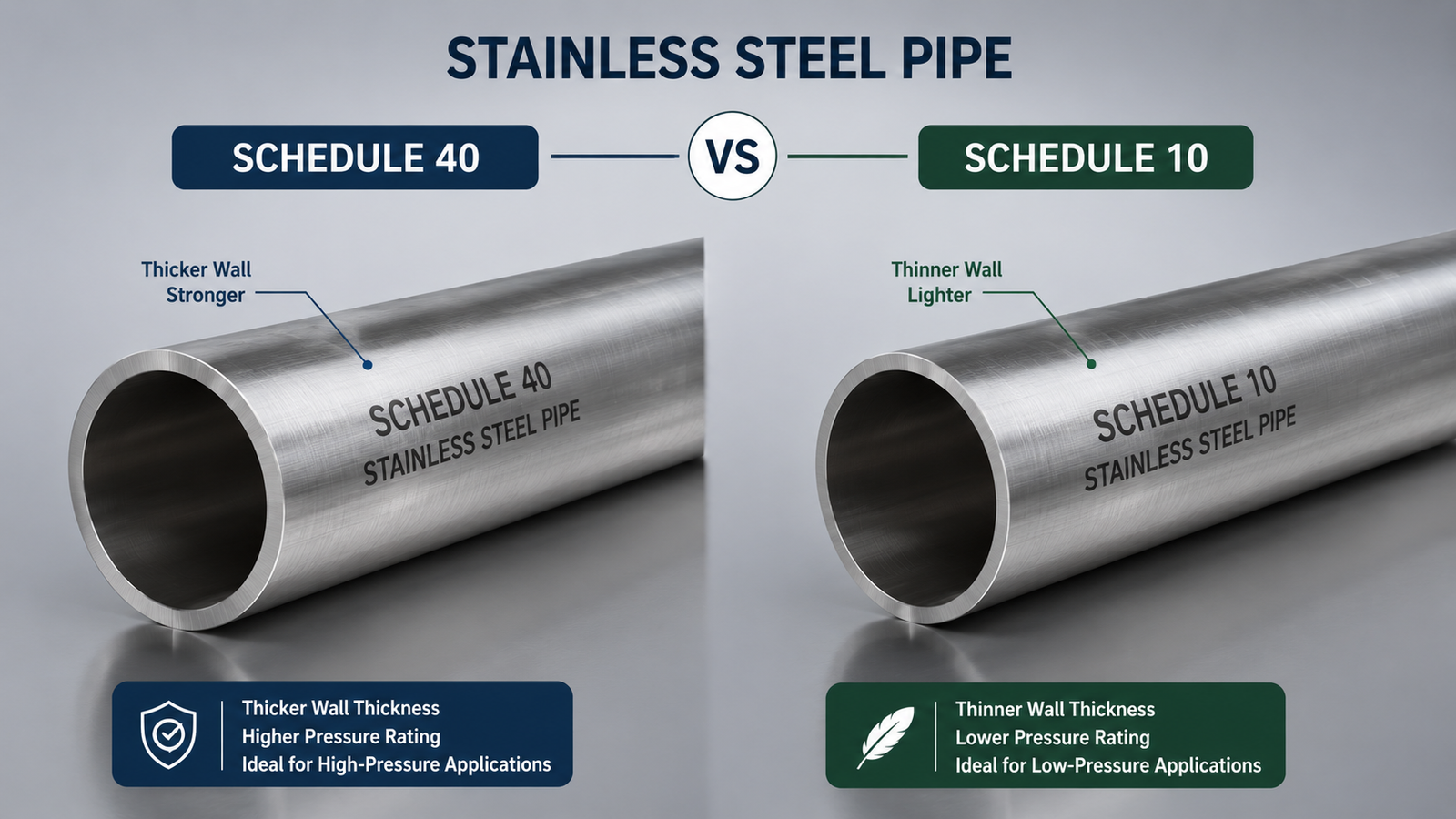

Main Difference Between Schedule 10 and Schedule 40 Pipe
The most important difference is wall thickness.
| Factor | Schedule 10 Stainless Steel Pipe | Stainless Steel Pipe Schedule 40 |
| Wall thickness | Lower | Higher |
| Pipe weight | Lighter | Heavier |
| Material usage | Lower | Higher |
| Pressure capability | Generally lower | Generally higher |
| Internal diameter | Larger | Smaller |
| Installation handling | Easier | More demanding |
| Mechanical strength | Moderate | Higher |
| Typical cost | Lower | Higher |
| Common application | Light-duty systems | Industrial-duty systems |
Although both may have the same nominal pipe size and outside diameter, their internal diameter can differ because of their wall thickness.
Why Pipe Wall Thickness Is Important
Wall thickness directly influences the performance of a piping system.
A thicker pipe wall may improve resistance to internal pressure, external mechanical loads, impact, and long-term wear. However, increasing wall thickness also adds weight and cost.
A thinner-wall Schedule 10 Stainless Steel Pipe can provide several advantages where heavy construction is unnecessary.
These advantages may include:
- Reduced material cost
- Lower transportation weight
- Easier installation
- Faster handling
- Lower structural loading
- Increased internal flow area
For this reason, the thickest available pipe is not automatically the best choice.
Pressure Handling Considerations
One common mistake is assuming that a schedule number alone determines a pipe’s pressure rating.
The actual allowable pressure depends on several engineering variables, including:
- Stainless steel grade
- Pipe diameter
- Wall thickness
- Design temperature
- Corrosion allowance
- Joint efficiency
- Manufacturing method
- Applicable piping code
- Welding quality
- Safety factors
A Stainless Steel Pipe Schedule 40 generally offers more wall thickness than Schedule 10, but actual system design should always follow recognized engineering calculations and project specifications.
Flow Performance and Internal Diameter
Pipe schedule also affects internal flow characteristics.
Because Schedule 10 has a thinner wall, its internal diameter is generally larger than Schedule 40 for the same nominal pipe size.
A larger internal diameter may provide:
- Lower flow resistance
- Improved fluid movement
- Reduced pressure loss
- Better flow capacity
However, flow performance should be evaluated together with pressure requirements, fluid velocity, friction loss, pump sizing, and system design.
Stainless Steel 304 and 316 Pipe Options
Material grade is just as important as pipe schedule.
Stainless steel 304 is widely used in general-purpose piping systems because of its excellent corrosion resistance, availability, and fabrication characteristics.
Stainless steel 316 contains molybdenum, which improves resistance to many chloride-rich and corrosive environments.
Low-carbon grades such as 304L and 316L are often selected for welded piping because they can provide improved resistance to sensitization during fabrication.
Selecting the correct grade helps improve the long-term reliability of both Schedule 10 Stainless Steel Pipe and Schedule 40 systems.
Benefits of Stainless Steel Pipe Schedule 40
The major benefits of Stainless Steel Pipe Schedule 40 include:
- Greater wall thickness
- Improved structural strength
- Strong resistance to mechanical impact
- Suitable for demanding industrial environments
- Available in multiple stainless steel grades
- Reliable performance under suitable pressure conditions
- Long service life with proper material selection
Schedule 40 can be especially beneficial where piping is exposed to vibration, mechanical contact, or higher operating requirements.
Benefits of Schedule 10 Stainless Steel Pipe
Schedule 10 Stainless Steel Pipe also offers several advantages.
Its lighter construction can simplify installation, especially in large projects requiring extensive piping.
Key advantages include:
- Reduced weight
- Lower material consumption
- Easier lifting and handling
- Faster fabrication
- Potentially lower project cost
- Larger internal flow area
- Excellent corrosion resistance when properly specified
This makes Schedule 10 attractive for applications where heavy-wall piping is not technically required.
How to Choose the Correct Pipe Schedule
Before selecting between Schedule 10 and Schedule 40, review the complete operating conditions.
Important factors include:
- Maximum operating pressure
- Design temperature
- Type of fluid or gas
- Corrosion potential
- Pipe diameter
- Stainless steel grade
- Flow requirements
- Support spacing
- Welding requirements
- Applicable industry standards
A professional engineering review is recommended for critical piping systems.
Common Industries Using Stainless Steel Pipes
Both Schedule 10 and Schedule 40 stainless steel pipes are used across many industries.
These include:
- Oil and gas
- Food and beverage
- Pharmaceuticals
- Chemical processing
- Water treatment
- Power generation
- Construction
- Marine engineering
- Pulp and paper
- Manufacturing
The correct schedule depends on service conditions rather than industry name alone.
Frequently Asked Questions
1. What is Stainless Steel Pipe Schedule 40?
It is a stainless steel pipe schedule with a relatively thicker wall designed for applications requiring greater mechanical strength and pressure capability.
2. What is Schedule 10 Stainless Steel Pipe?
It is a thinner-wall stainless steel pipe commonly used for suitable low-to-moderate pressure and general-purpose applications.
3. Is Schedule 40 thicker than Schedule 10?
Yes. For the same nominal pipe size, Schedule 40 generally has a thicker wall.
4. Which pipe is heavier?
Schedule 40 is normally heavier because it contains more stainless steel material.
5. Which pipe has a larger internal diameter?
Schedule 10 generally has a larger internal diameter for the same nominal pipe size.
6. Can Schedule 10 pipe be used industrially?
Yes, provided its pressure, temperature, and mechanical capabilities meet the system’s design requirements.
7. Is Schedule 40 suitable for high pressure?
It generally offers better pressure capability than Schedule 10, but actual allowable pressure must be calculated according to the applicable code.
8. Which stainless steel grade is commonly used?
304, 304L, 316, and 316L are among the most commonly used stainless steel grades.
9. Is Schedule 10 easier to install?
Its lower weight can make handling, supporting, and installation easier in many projects.
10. How do I select the right schedule?
Evaluate pressure, temperature, corrosion, pipe size, stainless steel grade, flow conditions, fabrication requirements, and relevant standards.
